Price: $57.62 - $40.99
(as of May 31, 2024 11:44:49 UTC – Details)
Blue Sea Systems Fuse Block ST Blade Battery Terminal Mount 4 Circuit Kit , part number 5024, allows you to easily add 4 fused circuits to the terminal of a battery. Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting hole: 3/8″ (M10) stud, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws. Mounts on the battery terminal stud and provides power to new accessories in your boat or vehicle. Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment. ABYC/USCG compliant insulating cover, 4-circuit negative busbar, write on labels, and four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals included.
Is Discontinued By Manufacturer : No
Product Dimensions : 10 x 4 x 2 inches; 3.53 ounces
Item model number : 5026-BSS
Department : unisex-adult
National Stock Number : 5920-01-545-3114
Batteries : 1 Unknown batteries required.
Date First Available : October 1, 2001
Manufacturer : Blue Sea Systems
ASIN : B001P6FTHC

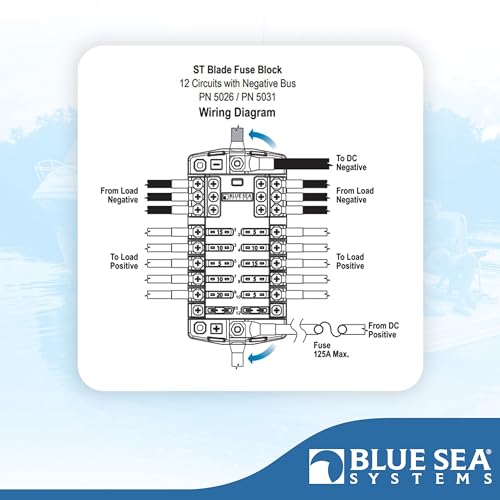

Blue Sea Systems Fuse Block ST Blade 12 Circuit with Ground and Cover, part number 5026, can be used for 24-hour circuits

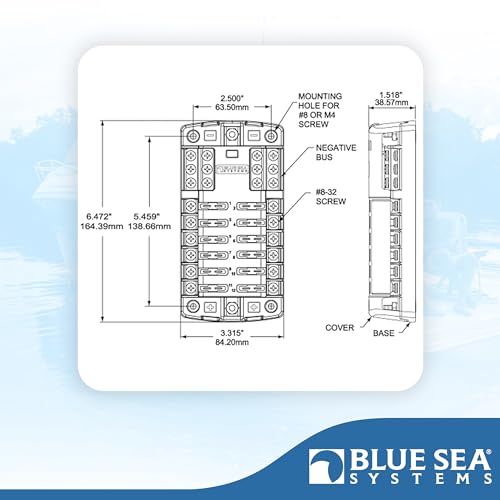

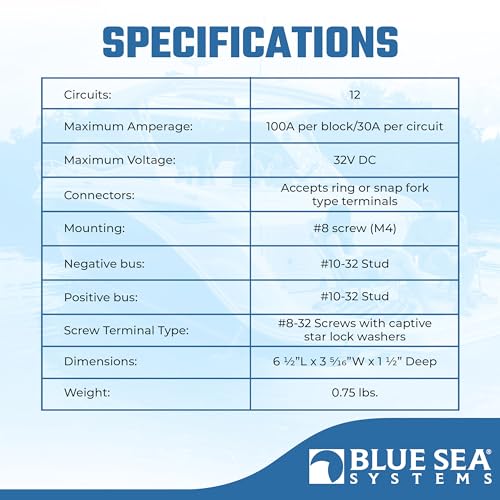

Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
Positive distribution bus with #10-32 stud
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open
Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses – fuses sold separately. Includes 20 write on circuit labels
